NJP-800
NJP-600
NJP-400

1. Touching-Screen, PLC program control panel with LCD.
2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
4. Easy speed selection and closed capsule length adjustment.
5. Electrical Appliance control system approved to CE, and international standard.
6. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
7. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
8. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.

PRODUCTION FLOW:

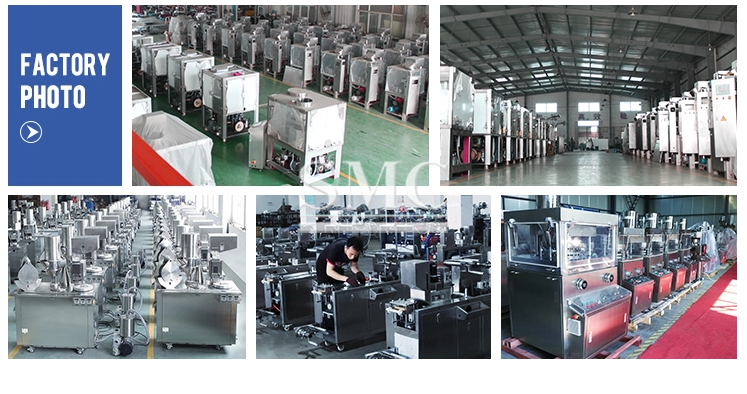

FACTORY PHOTO
