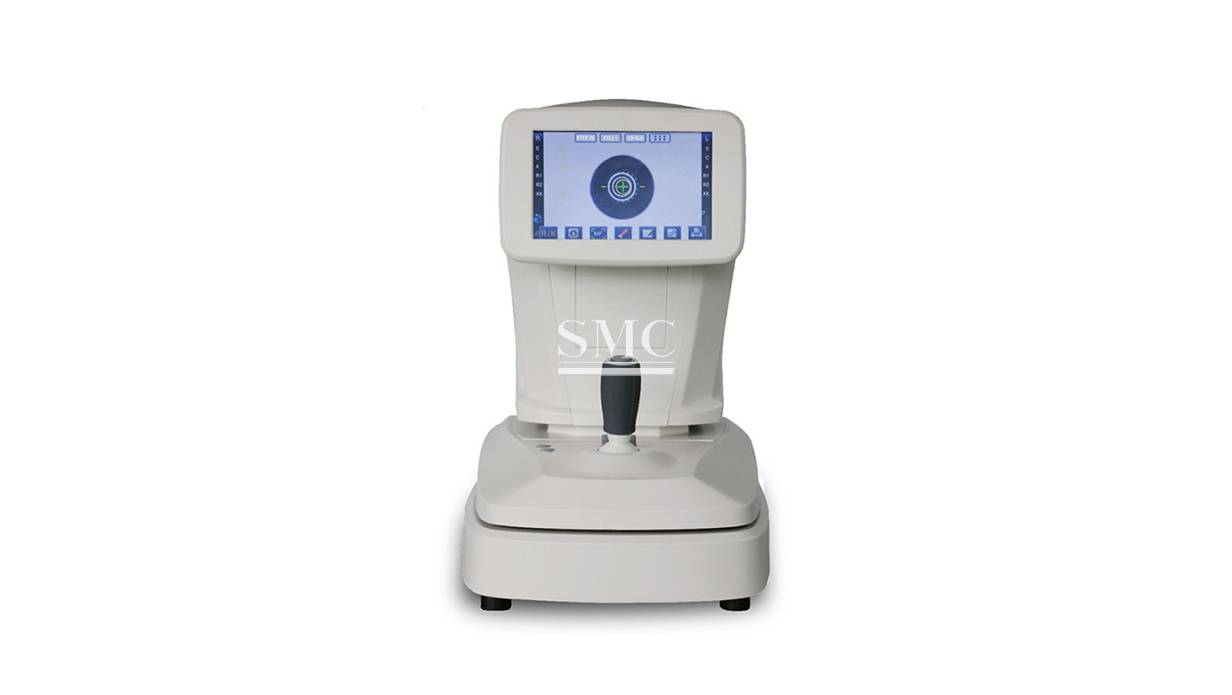

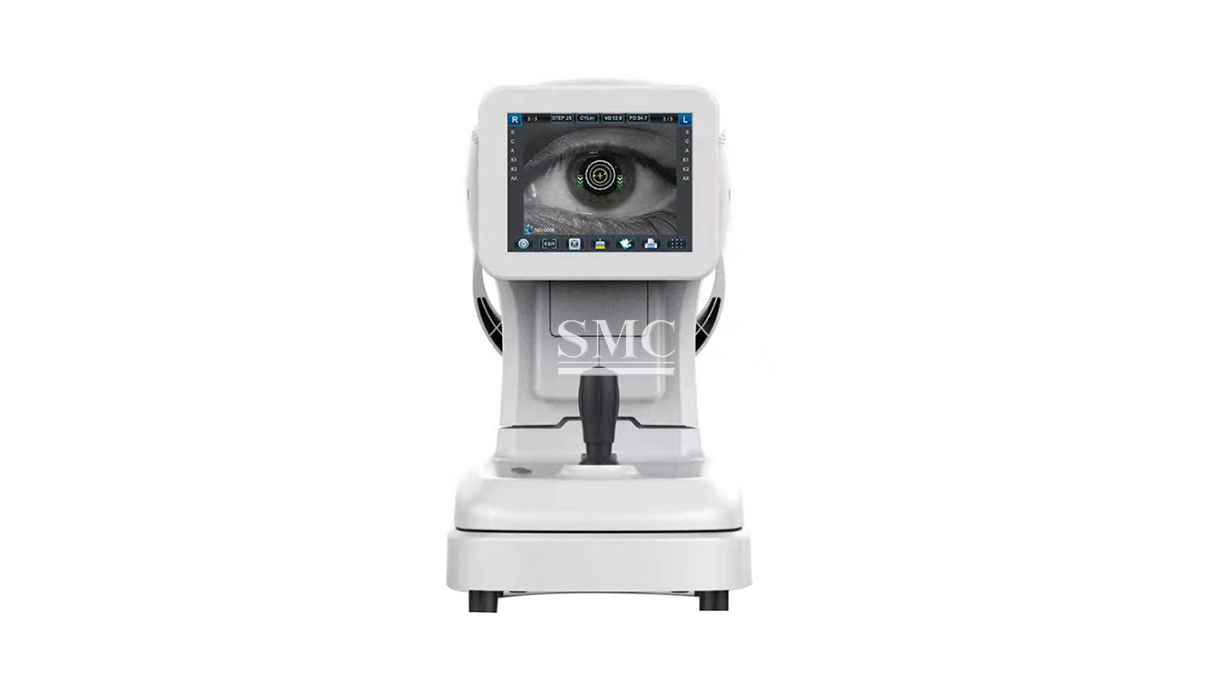

Auto Refractometer Ophthalmic Keratometer

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Medical Corporation is a professional manufacturer and supplier of Auto Refractor Ophthalmic Keratometer with high quality and reasonable price.

Auto refractometer keratometer is a professional vision test machine. Otometrist can measure refractive errors, including sphere, cylinder, corneal curvature and so on. It is designed to be accurate, and easy to operate.

If you want to know more about our Ophthalmic products or Auto Refractometer Ophthalmic Keratometer price please feel free to contact us, we will reply you within 24 hours.

1. Spherical: -20 - +20D (VD=12) 0.125D Step.
2. Corneal diameter: 2.0 -14mm (increment:0.1mm).
3. Cylinder: -8 - +8D 0.125D step.
4. Memory of data: 10 measure value for each right and left eye.
5. Display: 7'' TFT LCD.
6. Printer: Thermal printer.
7. Power supply: 100-240V 50/60HZ.

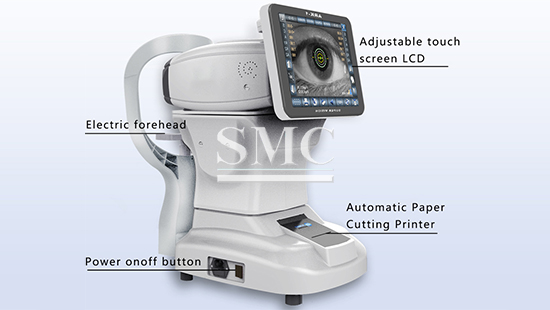

1. 7'' TFT LCD monitor.
2. Bigger better monitor, icon display,menu for easier operation and setting.
3. Motorized joystick: A Motorized joystick with auto-tracing mode is adopted.
4. New designed bracket, Attractive and durable.

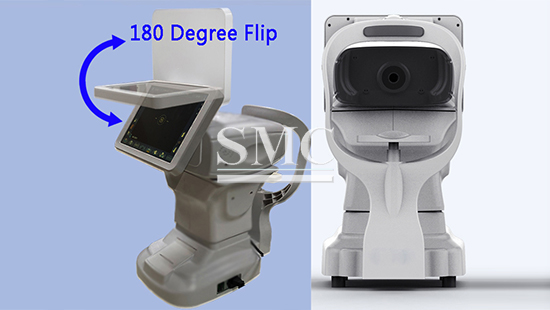

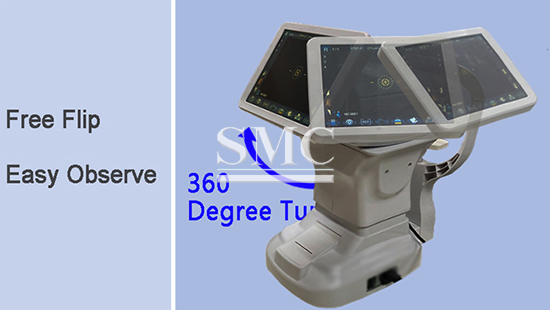

5. Tilting screen function that allows wide variance of access.
6. Auto focus function,Just move, it will automatically focus the eye and get the value.

1. New light path design.
2. Perfect imaging effect.
3. Image analysis fluent.
4. Mature processing technology.
5. Accurate measurements.
6. Electric lift rating

Technical Information of Auto Refractometer Ophthalmic Keratometer:

Technical Specification
Refractometer
Spherical	-20 - +20D (VD=12) 0.125D Step
Cylinder	-8 - +8D 0.125D step
Axis	0-180° 1° step
Pupil distance	45-88mm, 1mm step
VD	0mm,12mm, 13.75mm
Min. pupil size	2.0mm
Keratometer
Radius of curvature	5.0-10mm (increment:0.01mm)
Corneal Power	33.75-67.50D (when corner equivalent refractive index is 1.337)
Corneal Power	Increment selectable from 0.12,0.25D
Corneal astigmatism	0.00-8.00D (Increment selectable from 0.12,0.25D)
Axis	1-180D (increment :1°)
Corneal diameter	2.0 -14mm (increment:0.1mm)
Memory of data	10 measure value for each right and left eye
Others
Chart	Follow-up Colorful Fogging Chart System
Display	7” TFT LCD
Print	Thermal printer
Power supply	100 – 240V 50/60HZ
Dimension	476x268x472mm
Weight	20kg (44lb)

Packaging of Auto Refractometer Ophthalmic Keratometer:
