Ophthalmic Slit Lamp Microscope

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Medical Corporation is a professional manufacturer and supplier of Ophthalmic Slit Lamp Microscope with high quality and reasonable price.

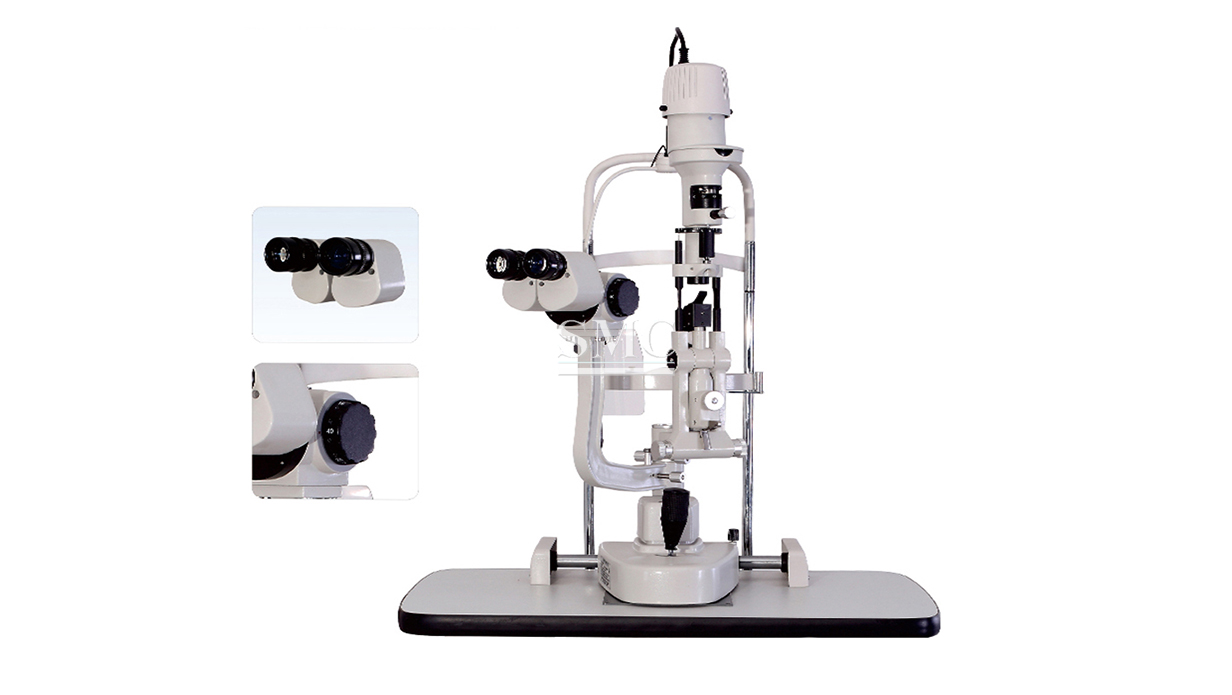

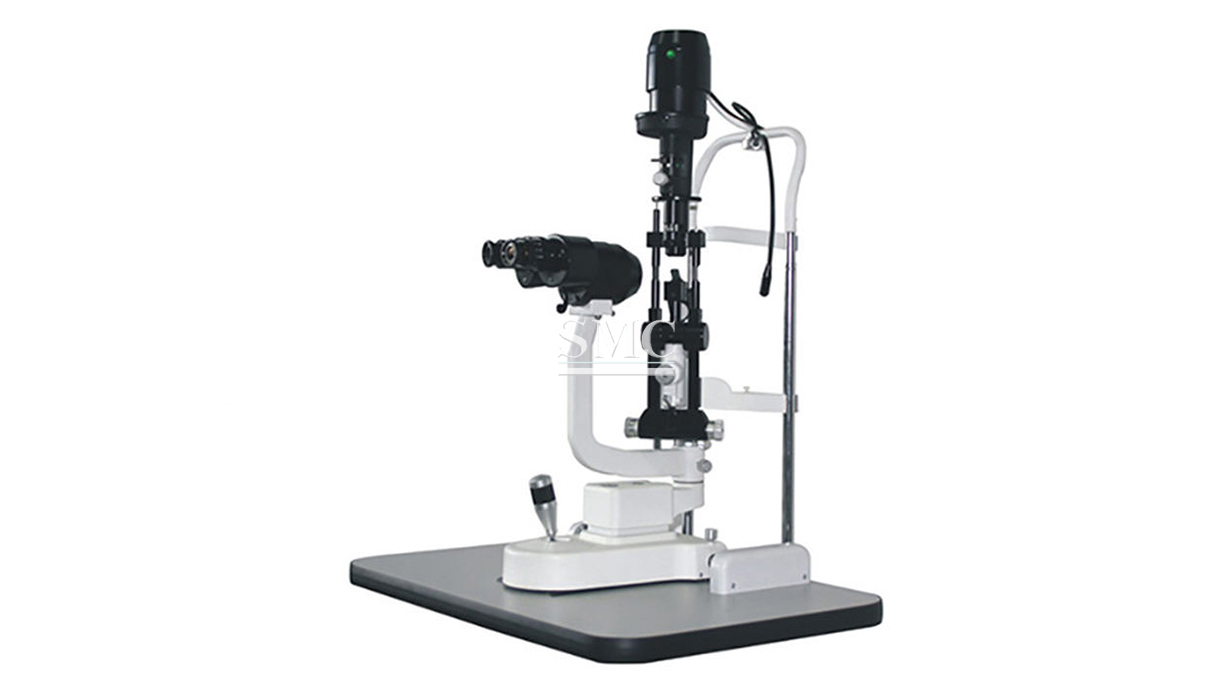

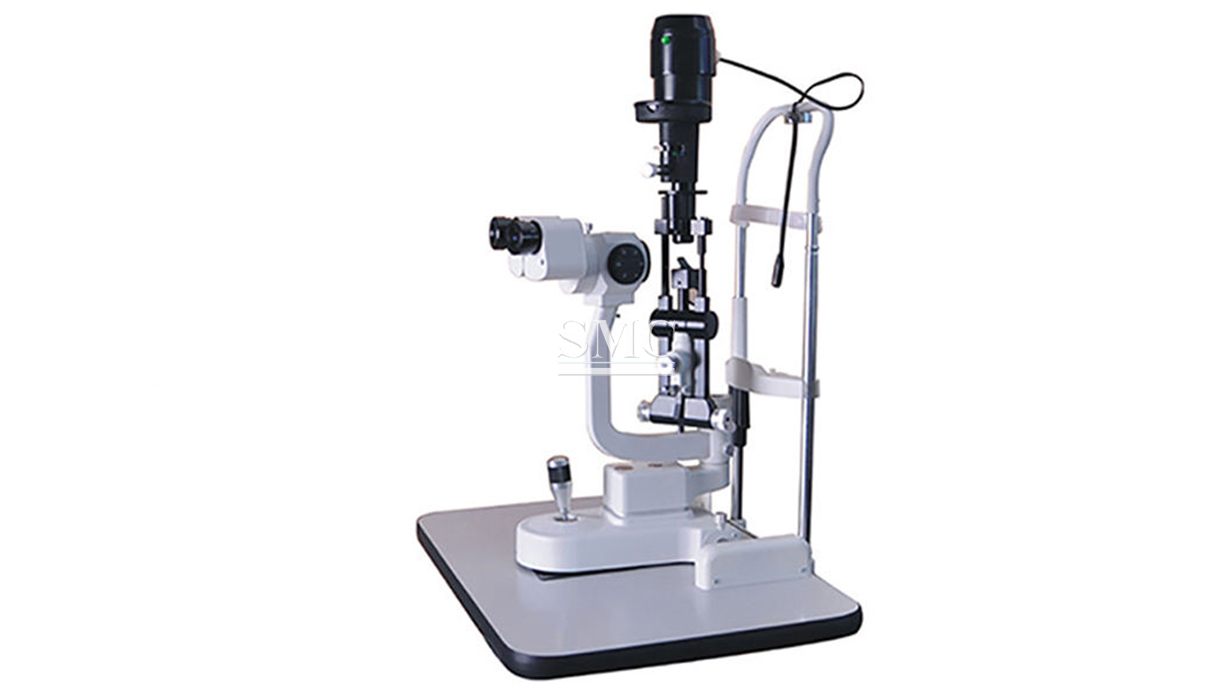

Ophthalmic Slit Lamp Microscope is a professional ophthalmic device for ophthalmologists to examine iris, cornea, and lens diseases or problems. This machine is designed with LED lamp, 5step magnifications, 4 filters, and stepless illumination adjustment.It has computer system based software, and you can conveniently manage patient information and examination data, and record whole exam process.

If you want to know more about our Ophthalmic products or Ophthalmic Slit Lamp Microscope price please feel free to contact us, we will reply you within 24 hours.

Type: Ophthalmic Optical Equipments
Forward and backward moving: 90mm
Up and down moving: 80mm
Left and right moving: 100mm
Handle: 15mm

Microscope Type: parallel angle stereo microscope
Total magnification: 6X,10X,16X,25X,40X.
Eyepiece: 12.5X
Field diameter: c 35mm, c 23mm, 14mm, 9mm,5.5mm
lPD adjustable distance:55-75mm
Adjustable diopter: +-5D

1. Professional collection media

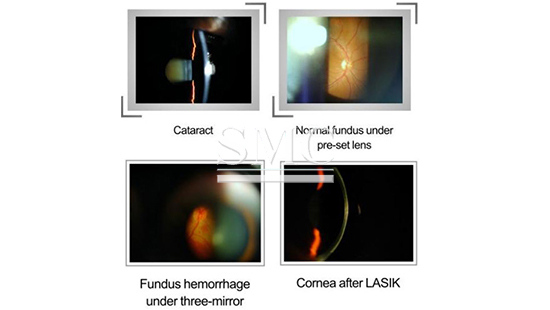

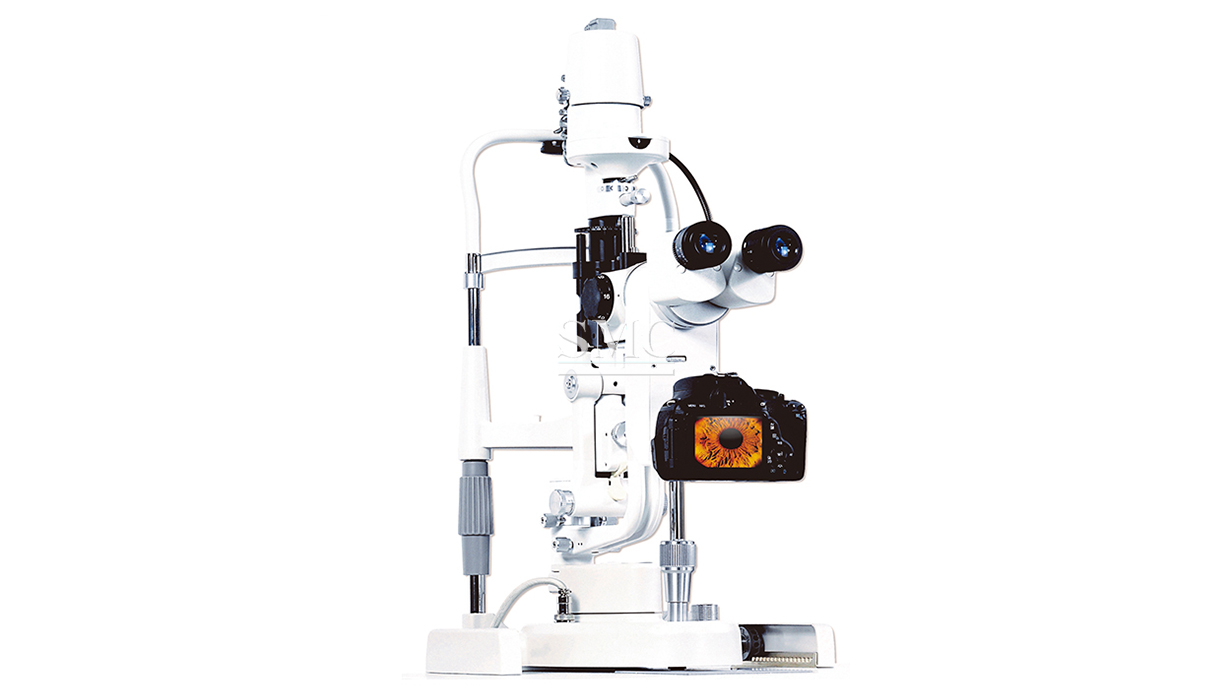

2. The instrument SLR camera as a collection media, real-time dynamic display, clear and vivid images, fast image acquisition.
3. Camera Shortcut
4. External shooting device spotted lesions touch of a capture clear picture.

Technical Information of Ophthalmic Slit Lamp Microscope:

Microscope	Type	Galileo parallel style
	Magnification change	Three(MSL-2ER-L)/Five magnification(MSL-2ER)
	Eyepiece	12.5x
	Total magnification	6x 10x 16x 25x 40x (LKM-2ER)
	Total magnification	10x 16x 25x (LKM-2ER-L)
	Field of View	6X: 33mm, 10X: 20mm, 16X: 13mm,
	Field of View	25X: 8mm, 40X :5mm
	Range of adjusting the distance of pupil	55 mm-75 mm
	Range of adjusting eyepieces	-8D - +8D
	Magnification	0.794x
	Slit width	0mm-14mm
	Slit length	1mm-14mm
	Diameter of aperture	φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm
	Slit angle	0-180
	Illumination angle	0, 5, 10, 15, 20
	Filter	Heat absorption, Grey, red free(Green), Cobalt blue
	Bulb	12v, 50w halogen bulb
Jaw bracket part	Up and down moving	80mm
Jaw bracket part	Fixation	Red LED
Power	Input voltage	110/220V±10%
	Input frequency	50/60Hz
	Input power	60VA
	Output voltage	Illumination: 4.5V 9V 12V
	Output voltage	Fixation: 6V
	Safe standard of electric	IEC601-1, type Ⅰof BF Model
	Options	Stand, teaching tube

Packaging of Ophthalmic Slit Lamp Microscope:

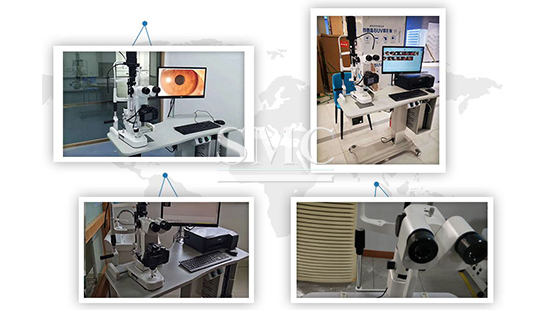

Case Study
