Disposable Protective Gowns Body Making Machine

Product Detail

Product Detail

Fully automatic protective gowns body making machine, from material feeding to belt welding, neckline cutting, folding, cuff cutting, shoulder welding, forming and cutting, etc. No need any manual operation and only requires one worker to operate it. At the same time, it is the first in the industry to realize that the nailing function can be turned on selectively to achieve the dual-use of one machine and two products and it replaces most of the traditional manual processes

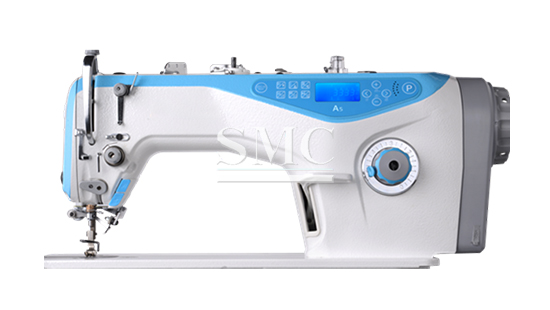

Lockstitch machine
Needle: DB×1 11-18#
Thread number: 2
Stitch Length(mm): 5
Height of Presser Foot(mm): 5-13
Sewing Speed(S.p.m): 5000
Volume (mm): 645×248×550
Weight(kg): 40/46

Automatic Overlock Machine
Needle: DC×27 9~19#
Needle number: 1, 2, 3
Thread number: 3~6
Stitch Width(mm): 1.5~6
Stitch Length(mm): 3.8, 4.6, 5, 8.5
Differential Ratio: 0.7-2, 0.8-1.5
Presser Foot Lifting Height (mm): 3.5 5. 5.5, 6, 7
Max Speed (s.p.m): 7000
Volume (mm): 525×360×640
Weight(kg): 33/44

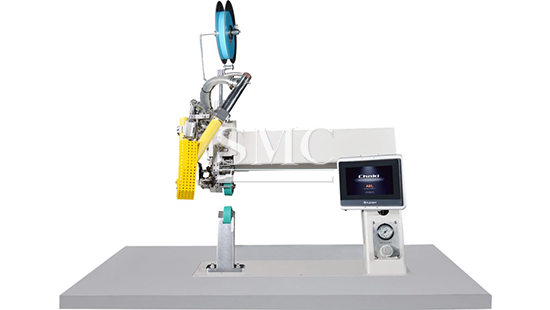

Hot Air Sealing Tape Machine
Power Supply: AC 220V 50/60Hz
Air Pressure: 0.3-0.5Mpa
Power Consumption: 3600W
Max. Speed: 60ft/min
Nozzle Width: 10-30mm, Standard: 22mm
Dimension (L*W*H): 1200*600*1700mm
Net Weight: 94kg

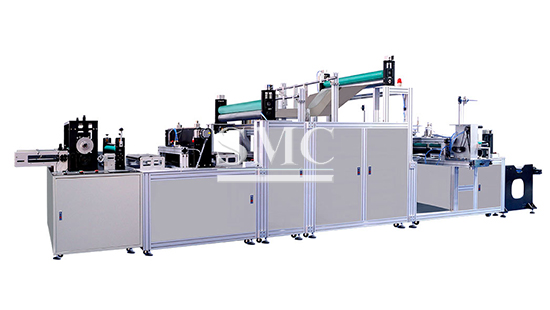

Automatic Disposable Protective Gowns Body Making Machine
Size: 7750*2800*2300mm
Power: 7kw
Capacity: 10-15pcs/min
Control mode: PLC
Detection mode: Photoelectric detection
Weight: 2750kg

Automatic Overlock Machine

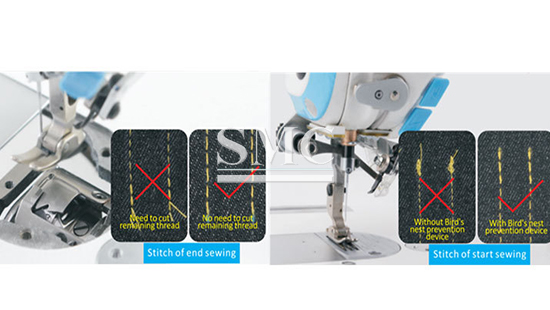

1. No need to cut remaining thread

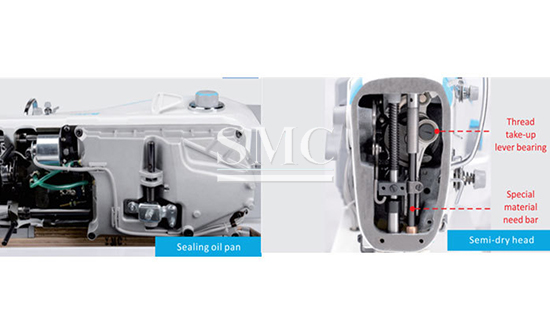

2. No oil, no trouble, clean and durable
3. Coaxial Driving, stable and quiet

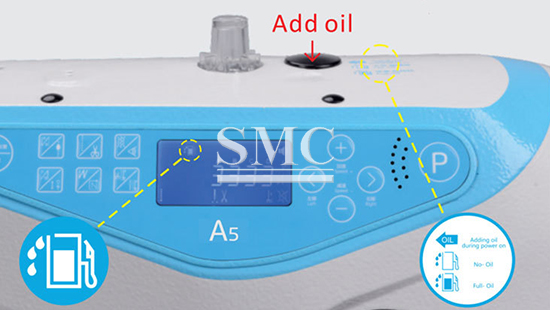

4. Voice guide, oil alarm
